IBM Breaks the 1nm Barrier with Revolutionary Nanostack 3D Chip Architecture

Beyond nanometers: a new atomic frontier

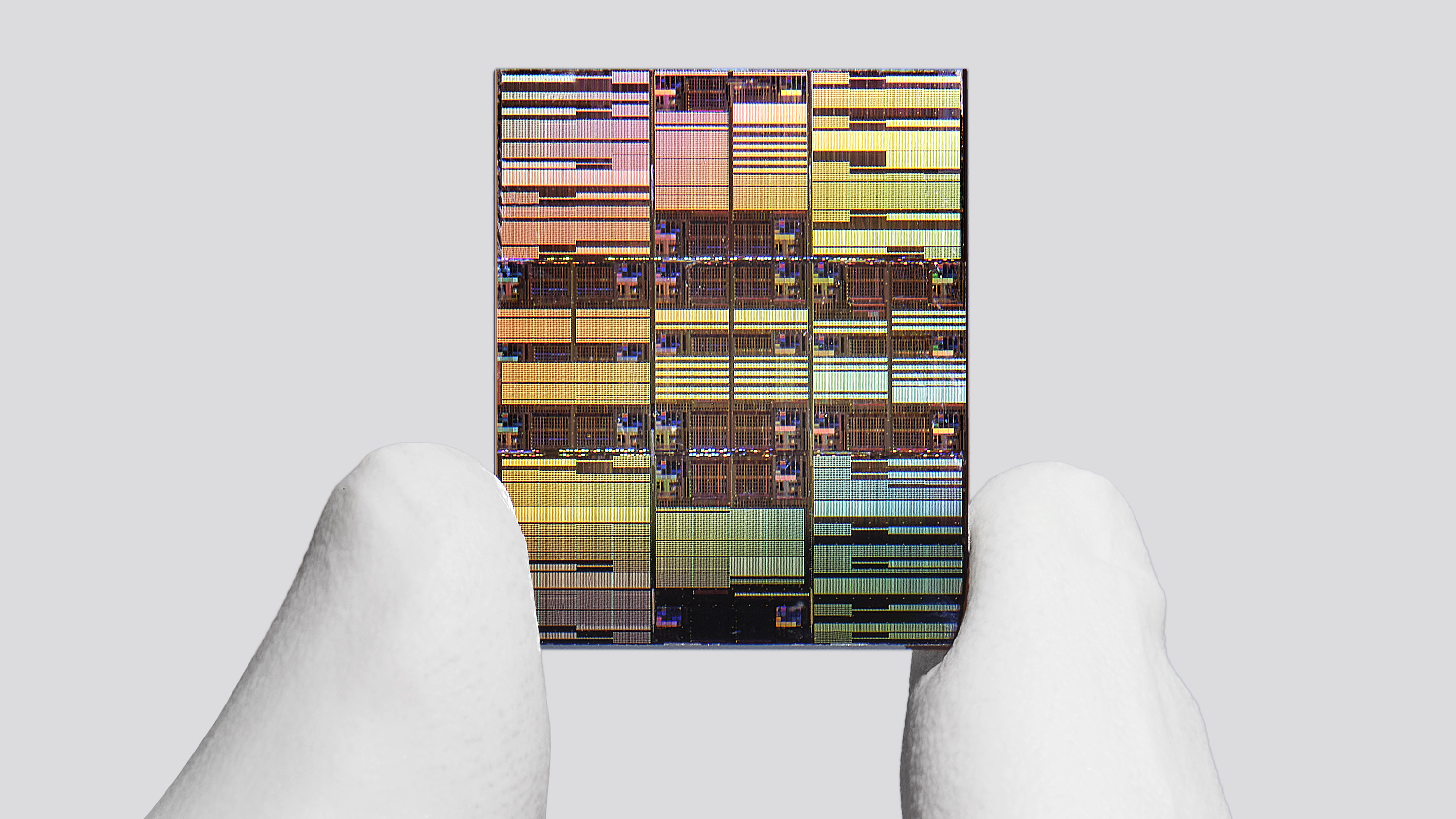

IBM unveiled the world's first sub-1 nanometer chip technology on June 25, 2026, introducing a transistor architecture operating at 0.7 nm — or 7 angstroms, a scale measured in the width of individual atoms.newsroom The new chip packs nearly 100 billion transistors onto a fingernail-sized piece of silicon, roughly twice the density of IBM's 2 nm node announced in 2021.forbes IBM projects the technology can deliver up to 50 percent more performance, or 70 percent greater energy efficiency, compared to its previous leading-edge process.newsroom +1

What makes nanostack different

The enabling innovation is a new transistor design IBM calls "nanostack" — the industry's first three-dimensional, nanosheet-based architecture.newsroom Rather than continuing to shrink transistors across a flat plane, IBM engineers vertically stacked and staggered two layers of transistors using 3D sequential integration. This differs fundamentally from the "3D stacked" packaging used by AMD, Intel, and Nvidia, which bonds finished chip packages rather than individual transistors.forbes IBM builds each tier on a separate wafer and bonds them together using ultra-thin dielectric bonding, letting n-type and p-type transistors be optimized independently with different materials — a level of control impossible in conventional single-tier designs.tomshardware

The approach also delivers a 40 percent improvement in SRAM density, presented at VLSI 2026 and described as the largest leap in on-chip memory scaling in at least a decade.newsroom "We're not just making smaller transistors, we're reinventing how chips are built," said Jay Gambetta, director of IBM Research.technologyreview Dan Hutcheson, vice chair of TechInsights, called it "transformational," adding: "This puts another 10, 15 years on the roadmap."technologyreview

Production path and manufacturing hurdles

IBM's nanostack roadmap projects at least another decade of chip generations, scaling from the current 7-angstrom node toward a single angstrom.eetimes The work is being conducted at IBM's Albany, New York research facility with partners including Lam Research, Tokyo Electron, and SCREEN Semiconductor Solutions, which have already produced functioning test devices.newsroom IBM says it sees a path to production within five years, a timeline comparable to how it licensed its 2 nm process to Japanese chipmaker Rapidus.tomshardware +1

Significant manufacturing challenges remain. Using two bonded wafers raises alignment precision demands, introduces yield risks at the bond interface, and complicates thermal management.tomshardware IBM has not disclosed cost projections, and analysts note the dual-wafer approach is likely cost-effective only for high-density data center AI chips rather than mainstream consumer processors.

AI's energy crisis drives the urgency

The announcement comes as generative AI workloads push data center energy consumption to record levels, straining power grids globally.forbes A chip achieving the same computation at 70 percent lower energy would substantially ease that burden. IBM vice president of semiconductor R&D Huiming Bu said the company expects chip designers across GPU and CPU markets to adopt nanostack, and that Intel, TSMC, and Samsung are each pursuing their own complementary transistor stacking strategies.technologyreview
